2850mm Width Between Columns CE Approved Clear Floor Gantry Hoist for 4200kg Car Lift

5 sets
MOQ
$1,299.00/sets >=5 sets
цена
2850mm Width Between Columns CE Approved Clear Floor Gantry Hoist for 4200kg Car Lift
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Design: Two Post
Type: Double Cylinder Hydraulic Lift
Lifting Capacity: 4200kgs
Warranty: 12 Months
lifting time: ≤55S
lifting height: 1920mm
Minimum Height: 95mm
Total Height: 3835mm
Width Between Columns: 2850mm
total width: 3410mm
gross weight: 652kgs
Port: Guangzhou/Shenzhen
Основная информация
Place of Origin: Guangdong, China
Фирменное наименование: wintai
Model Number: 7214
Оплата и доставка Условия
Packaging Details: standard export package
Supply Ability: 1000 Set/Sets per Month
Характер продукции
Product Overview

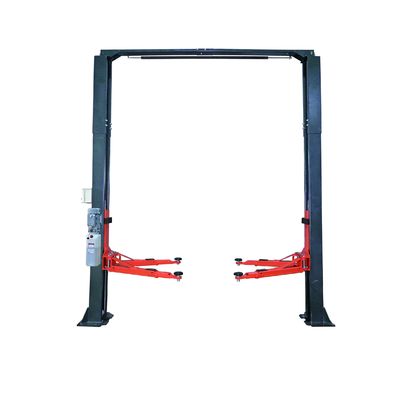

CE approved clear floor two post car lift gantry hoist 4200kgs

CE approval. 4,200Kg (9,300LBS.) lifting capacity. Dual-point lock release by manual and 24V low voltage operation. Durable chain drive cylinder in each column carries with anti-surge valves. Standard with 4 two-stage lifting arms. Screw-up rubber pads with min height 95mm (3 3/4”).
Standard with curtain inside column and foot guard. Standard with high limit switch. 1920mm (75 9/16”) lifting height suitable for various operators. Overhead safety protection device. Automatic arms restraints. Professional powder coating.
FEATURES AT A GLANCE
1. The adapter is ultra-thin design, the minimum height from the ground is 95mm(3 3/4”), which is more suitable for the maintenance and lifting work of low-chassis vehicles. 2. The maximum height is 3835mm(151”), and the effective height is 3700mm(145 11/16”), which is more suitable for the lifting of vehicles with high roof. 3. The inner pulley of the column is installed on the side of the oil cylinder. Even if the retaining ring falls off, the oil cylinder is only 10mm(3/8”) from the shaft end, which can effectively prevent the pulley from coming out. 4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam. 5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.

2850mm Width Between Columns CE Approved Clear Floor Gantry Hoist for 4200kg Car Lift 0
2850mm Width Between Columns CE Approved Clear Floor Gantry Hoist for 4200kg Car Lift 1

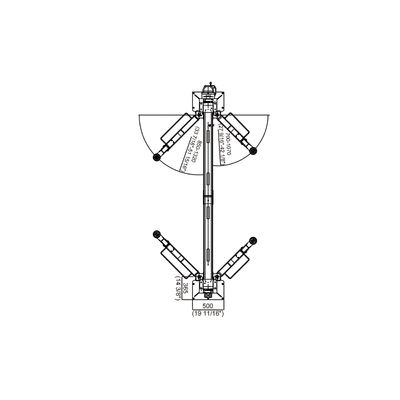

Right elevation
2850mm Width Between Columns CE Approved Clear Floor Gantry Hoist for 4200kg Car Lift 2
Left elevation
2850mm Width Between Columns CE Approved Clear Floor Gantry Hoist for 4200kg Car Lift 3

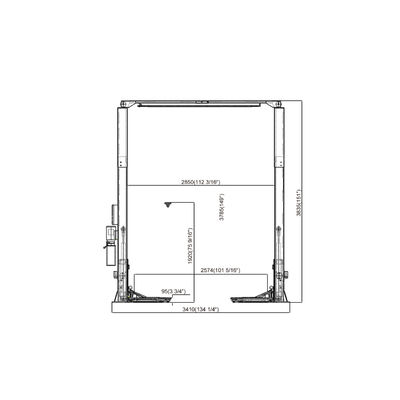

Front elevation
PRODUCT SPECIFICATIONS
No
Item
Data
1
lifting capacity
4,200kgs (9,300LBS)
2
lifting time
≤55S
3
lifting height
1920mm (75 9/16”)
4
minimum height
95mm (3 3 /4”)
5
total height
3835mm (151”)
6
Width Between Columns
2850mm (112 1/4”)
7
Total Width
3410mm (134 1/4”)
8
Gross Weight
652kgs (1,437LBS)
PRODUCT CONFIGURATION
2850mm Width Between Columns CE Approved Clear Floor Gantry Hoist for 4200kg Car Lift 4
dual point lock release
2850mm Width Between Columns CE Approved Clear Floor Gantry Hoist for 4200kg Car Lift 5

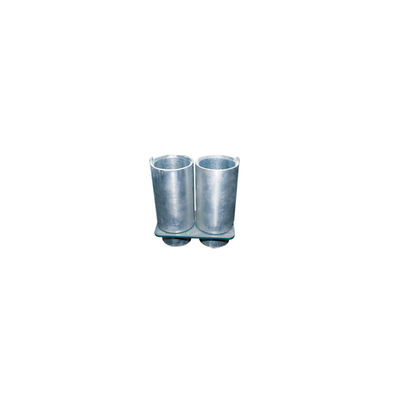

extension adapter
2850mm Width Between Columns CE Approved Clear Floor Gantry Hoist for 4200kg Car Lift 6

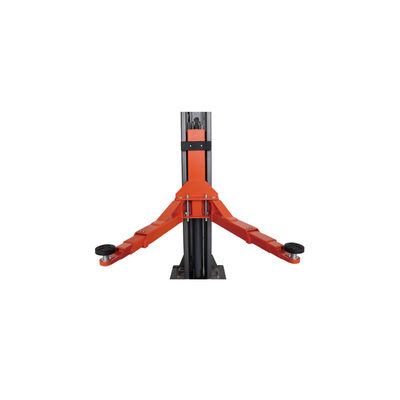

optional 3-step arms
